MUD inserts making

MUD Mold Making For Rapid prototype Moldings

Mud mold custom manufacturing for rapid prototype injection molding parts, short lead time on mold design, mold making, mold trial phases,  saving project developing cost. Mud injection molding uses DME master unit die holder or custom mud frames, we just design the mud inserts for making, using small injection molding machines for parts molding.

MUD frame injection molding advantage

  • Short lead time project developing and molding
  • Cheap mold making cost and molding cost
  • Baby size machine available
  • Rapid prototype injection molding useful
  • Cheap mold transfer charge

Project Overview

Place of Origin: Guangdong, China (Mainland) Brand Name: UPMOLD Model Number: OEM
Mold Type: NUD Injection Mold Product Material: Plastic Resin Product: Clip
Design software: Solidworks/PROE/
UG/CAD.ETC.
Mould base: LKM.HASCO.ETC. Mould material: P20/718/738/NAK80/
S136/2344.ETC.
Machining: HIGH SPEED CNC Plastic material: ABS/PP/PS/PE/PVC/
PA6/PA66…..etc
Mould life: 100,000-1000,000SHOTS
Runner: Hot Runner\ Cold Runner Cavity: Single /Multi Cavities Certification: ISO9001:2015
Dimension: As Tooling design Size Packing: Wood Box Or Steel Frame Shaping Mode:  By Sea Or By Air

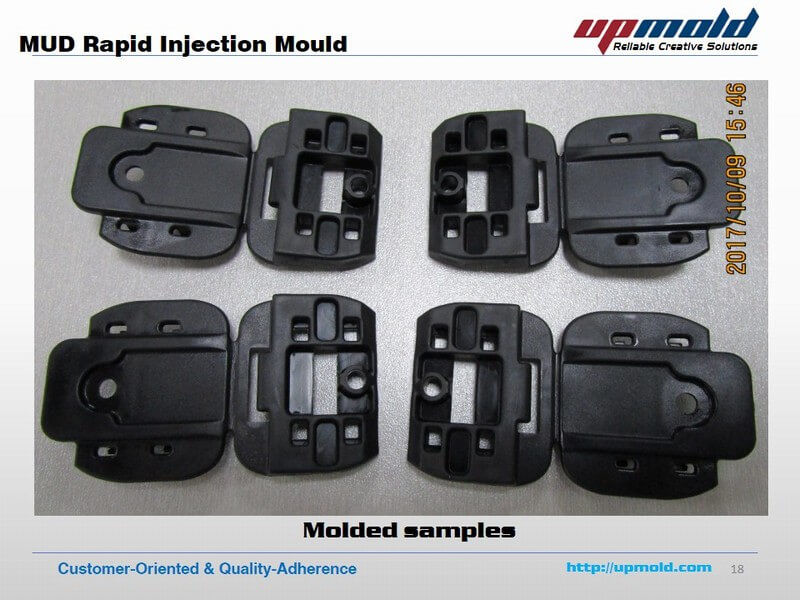

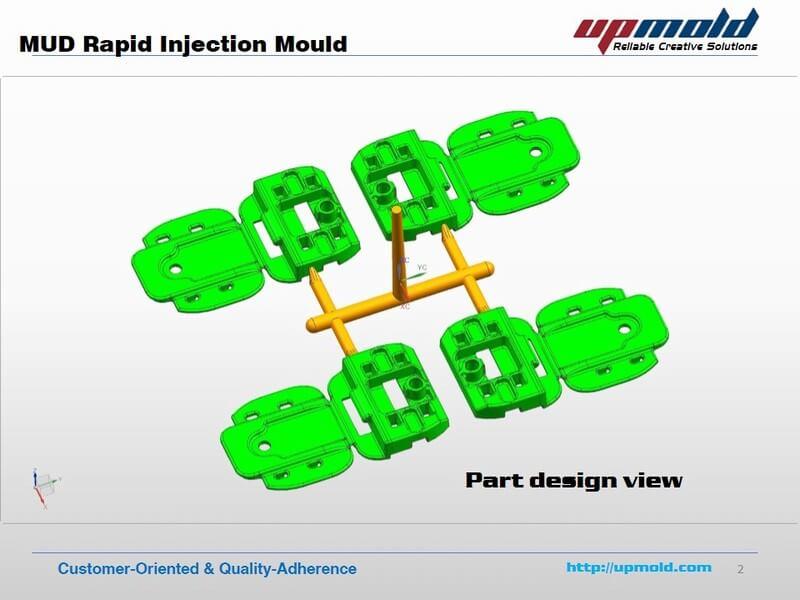

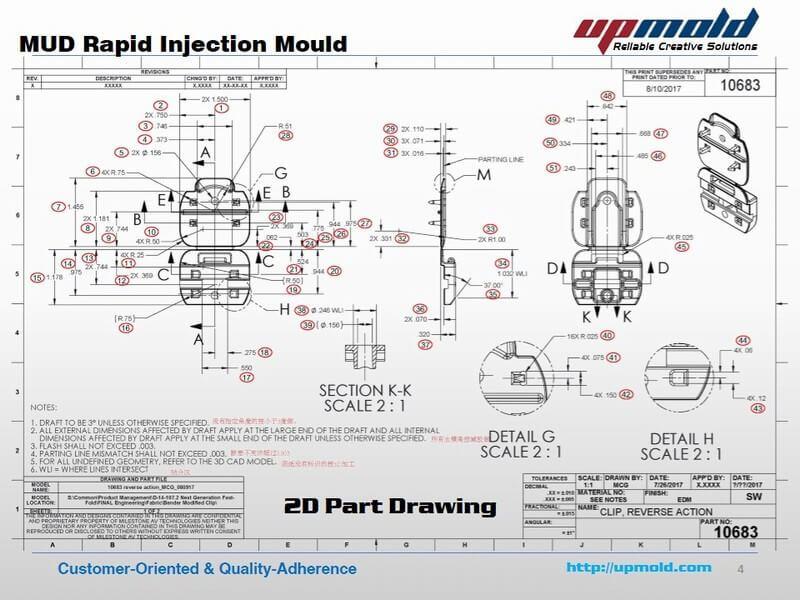

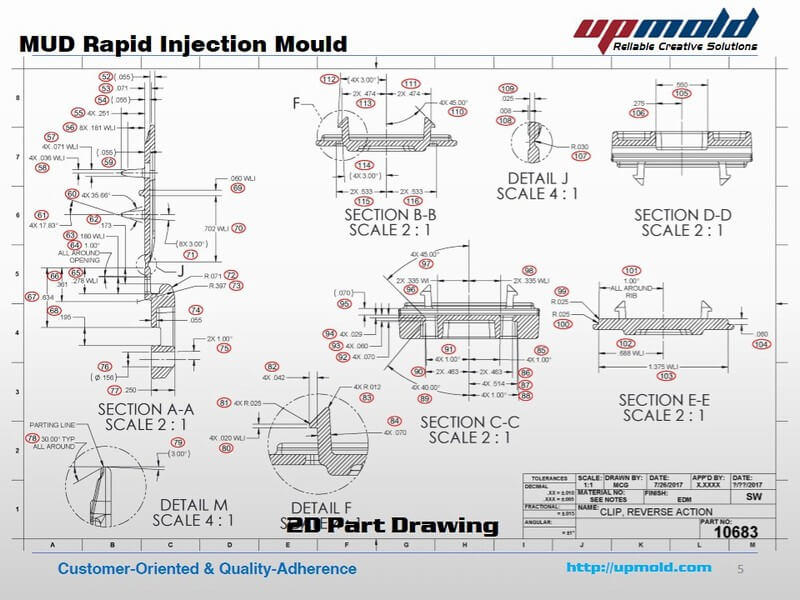

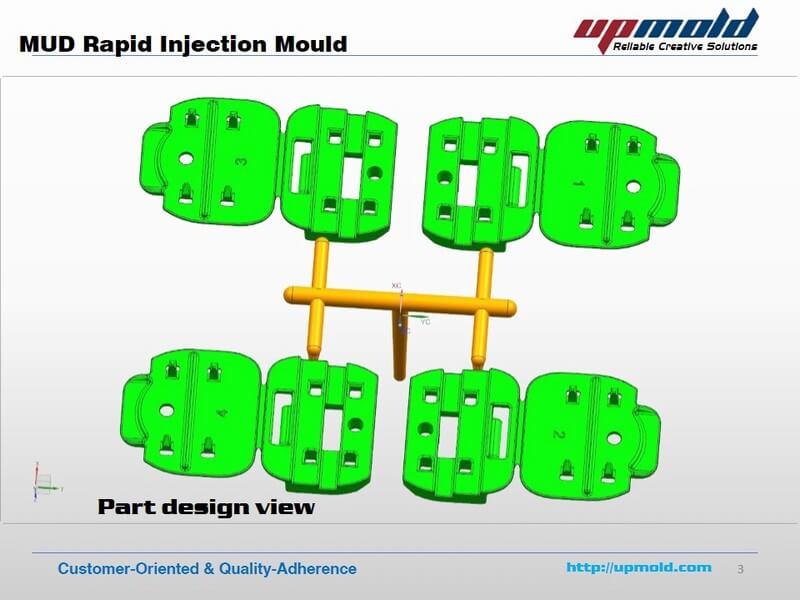

MUD Fame Molding Part Drawing

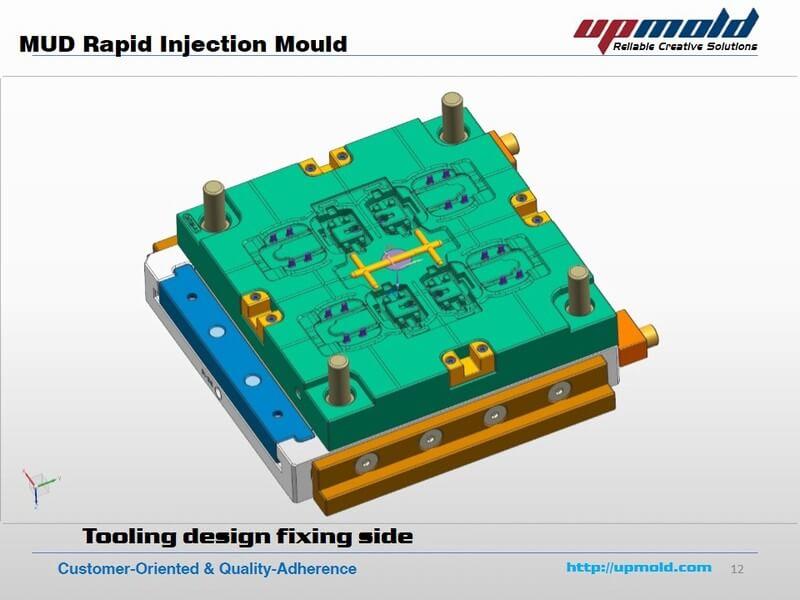

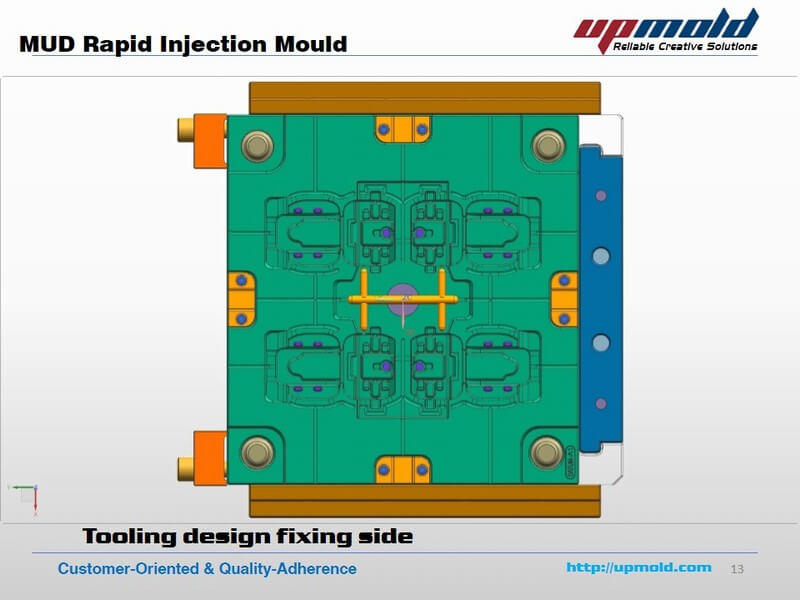

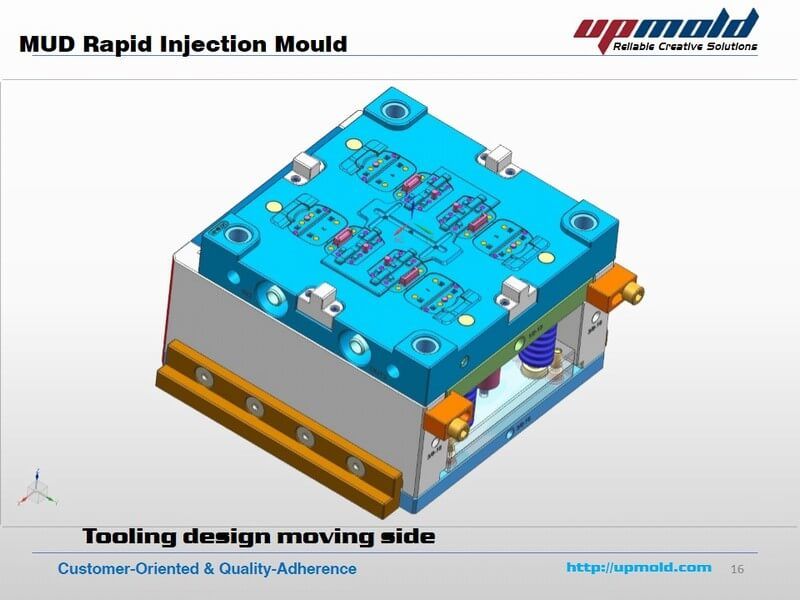

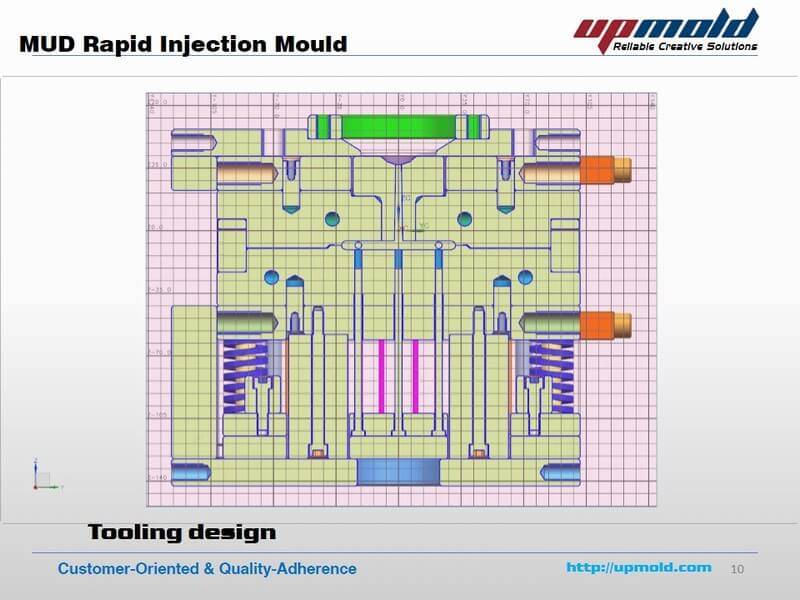

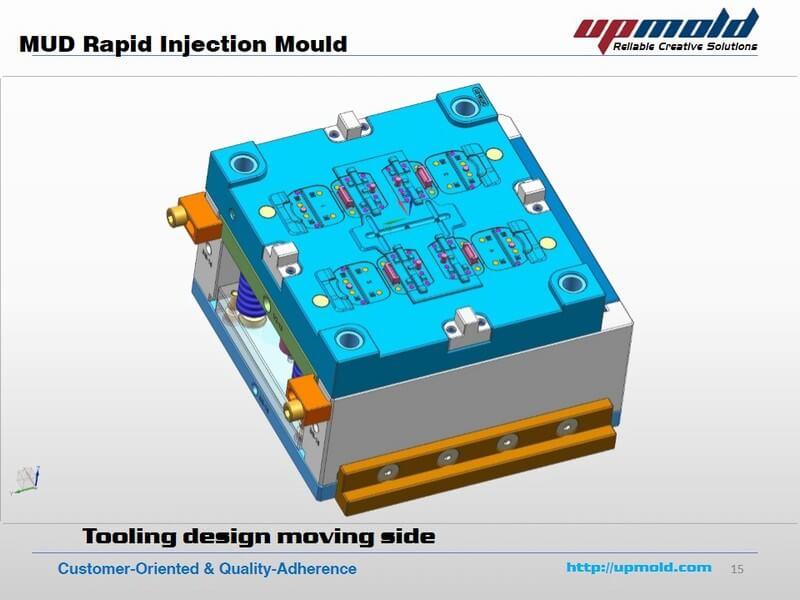

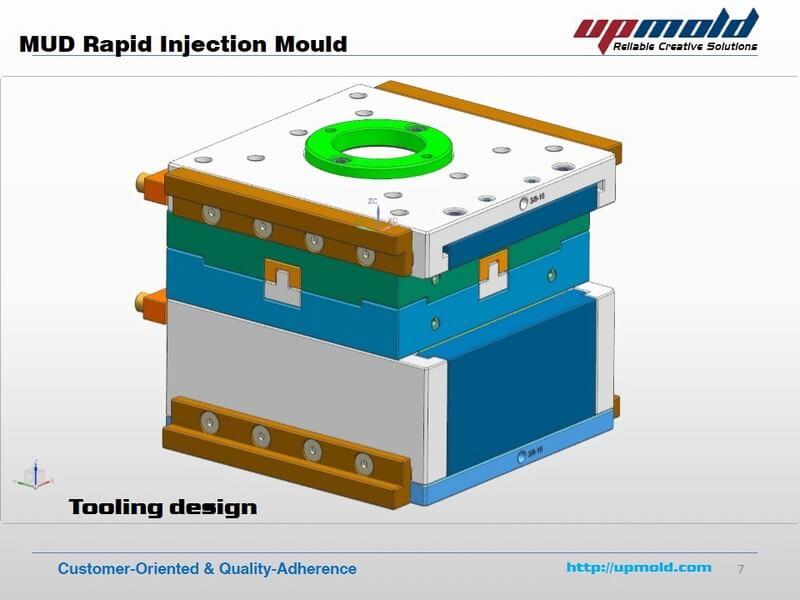

MUD Frame Mold Design

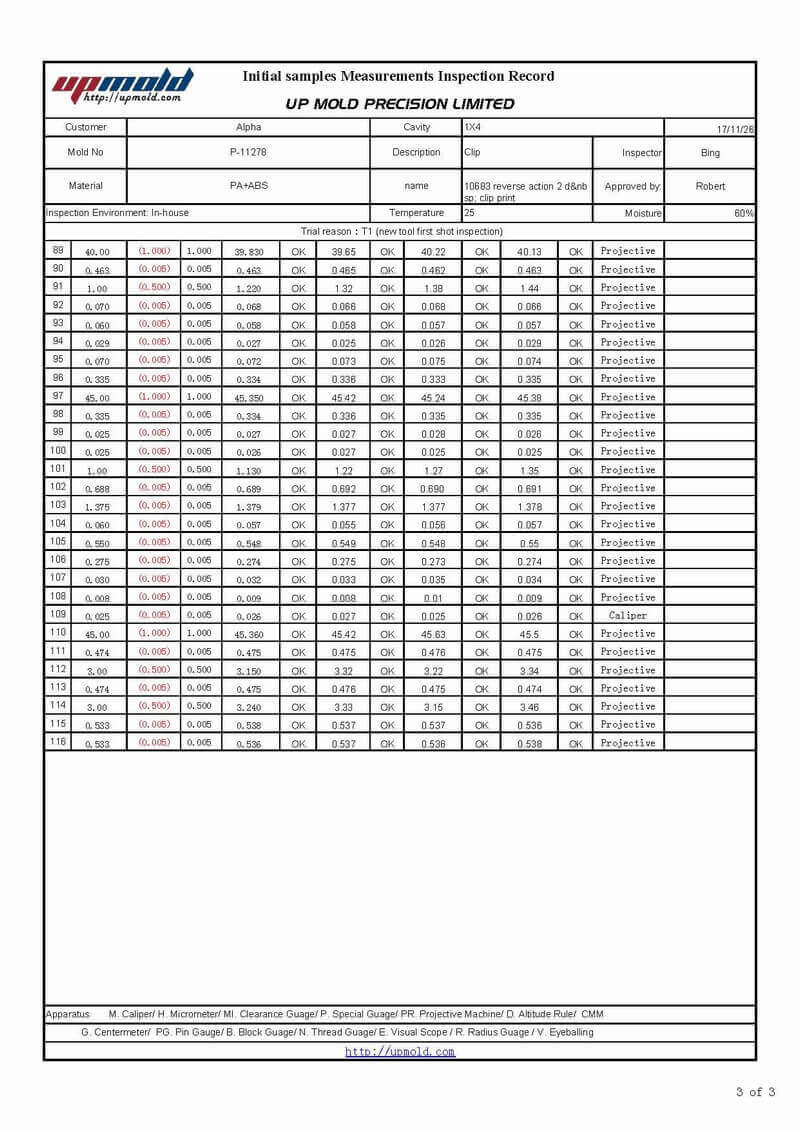

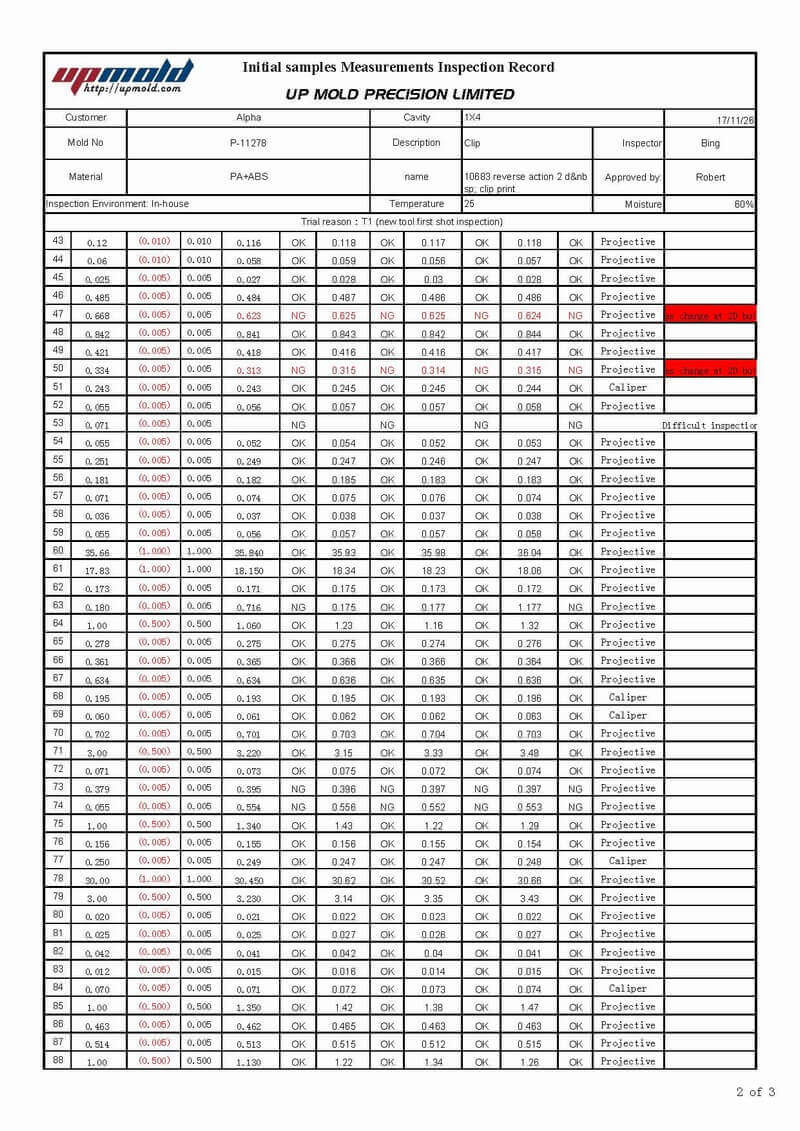

MUD Injection Molding Inspection Report

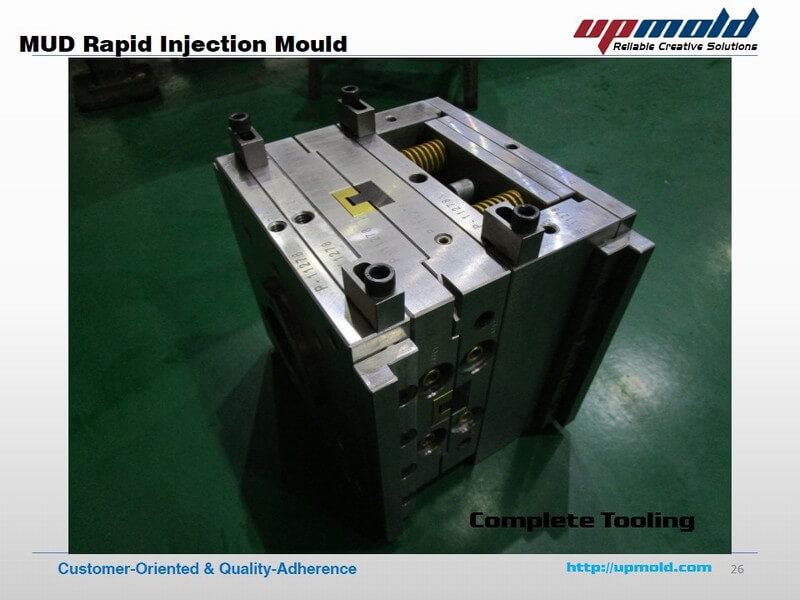

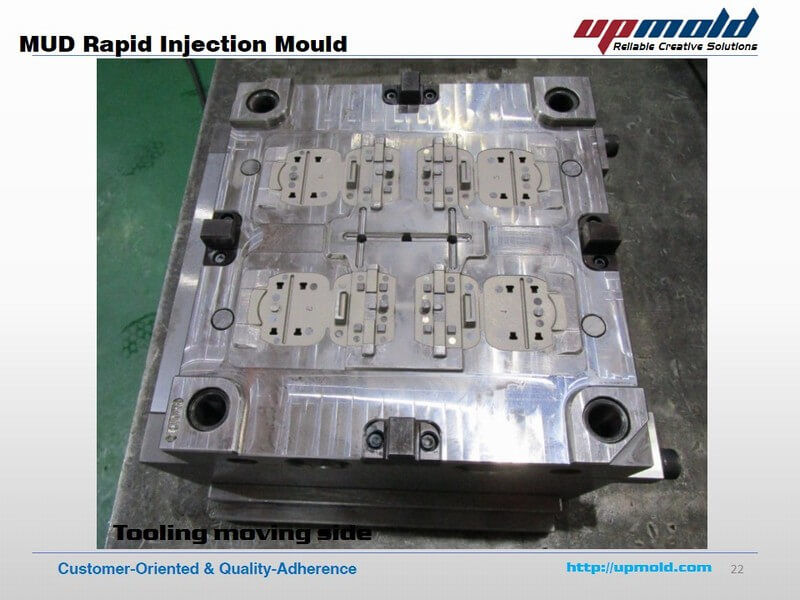

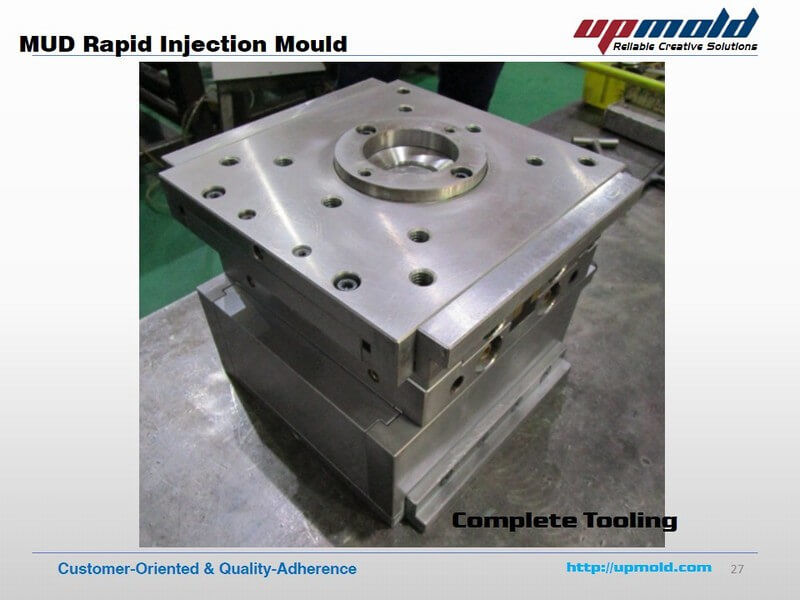

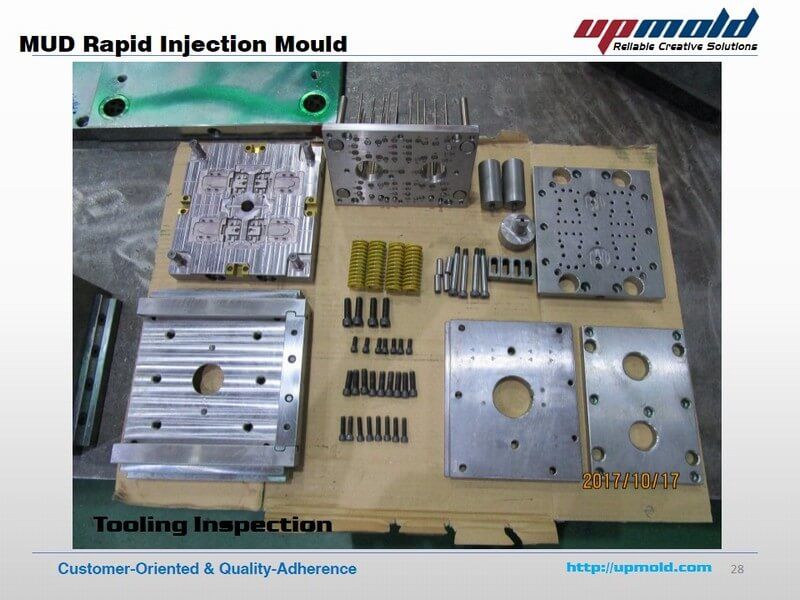

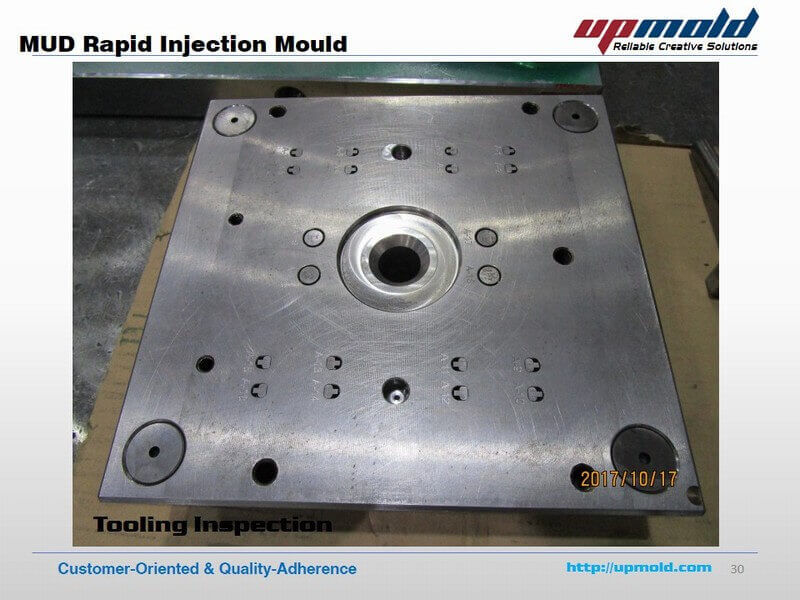

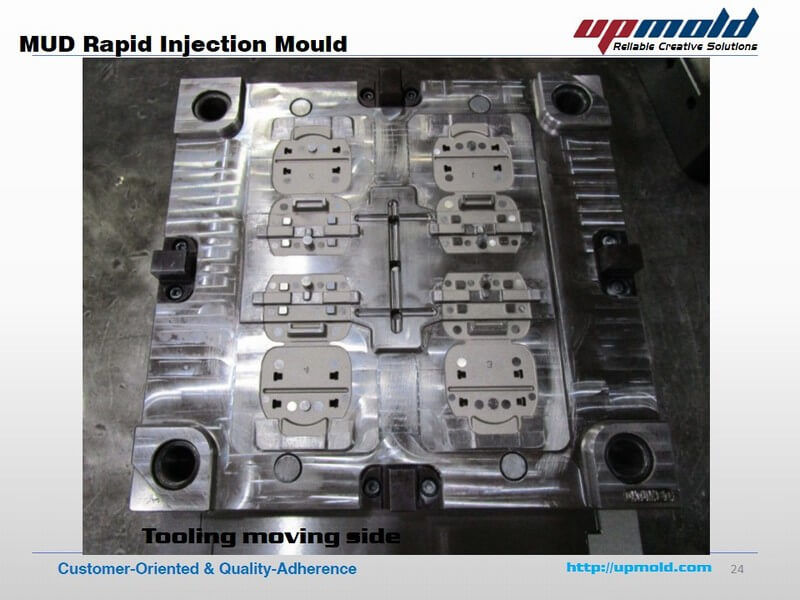

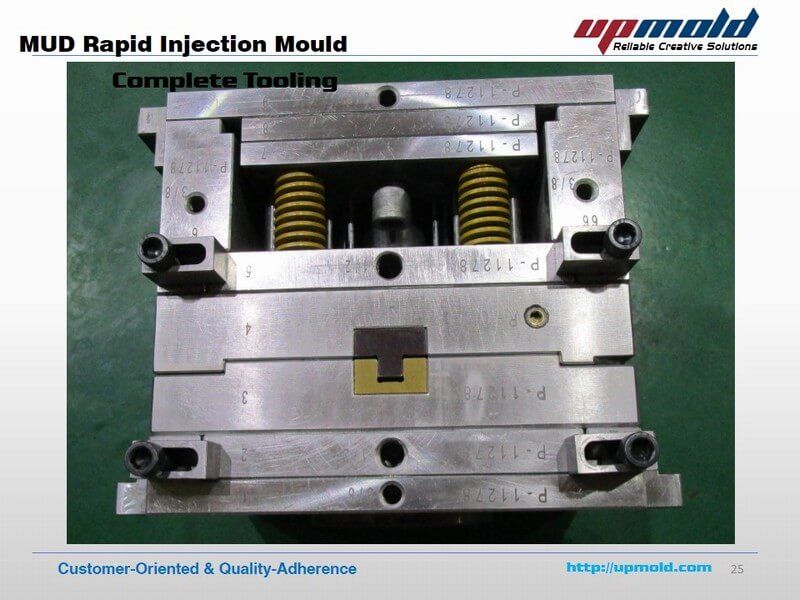

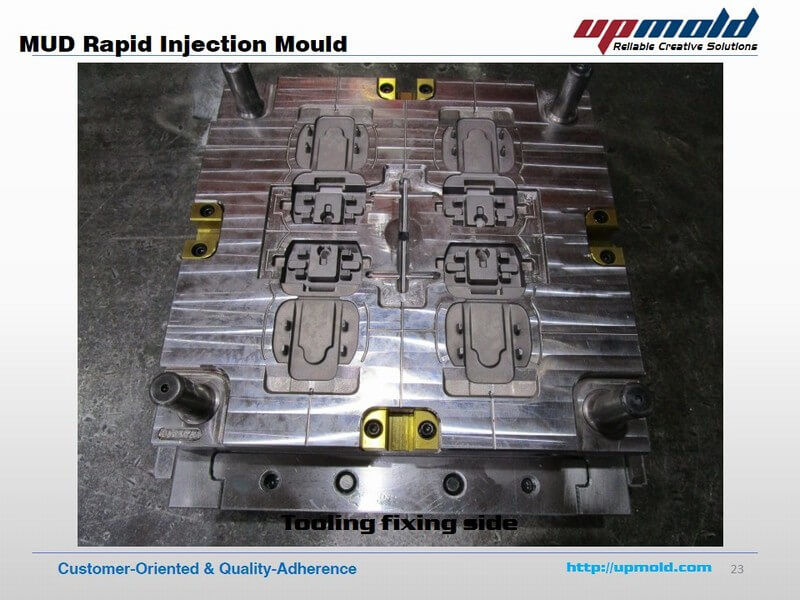

MUD U Frame Mold Making

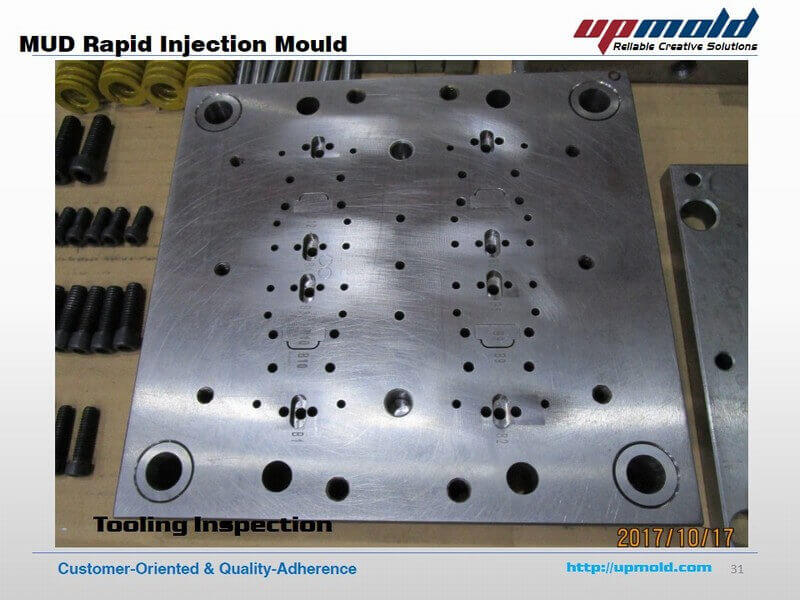

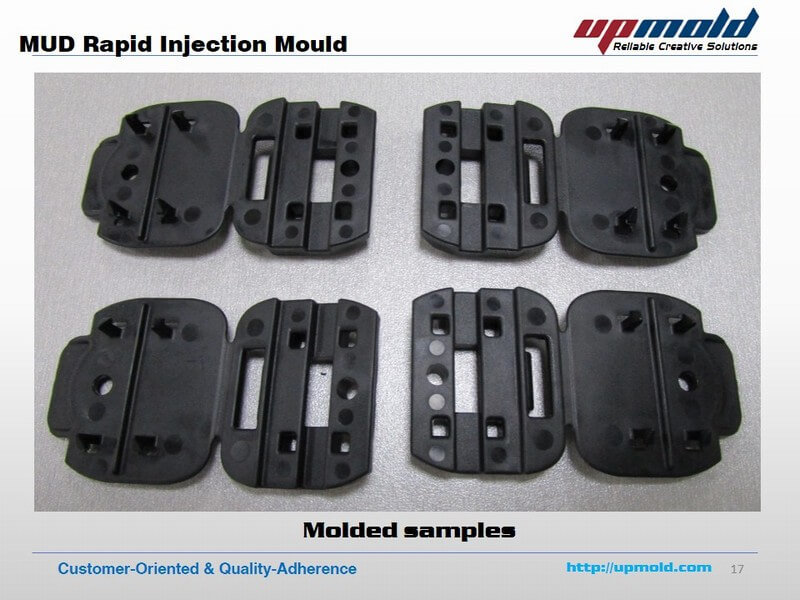

MUD Injection molding Inspection & Checking

MUD Frame Mold Trial Video

Product Description

Product Name Professional OEM custom car door trim of plastic injection molding and molds
Design software
Solidworks/PROE/UG/CAD.ETC.
Mould base
LKM,HASCO.ETC.
Mould material
S136/2344/718/738/NAK80/P20
Plastic material
PVC/PA66/PC/PE/POM/PMMA/ABS/TPU/TPE/PE/PP.ETC.
Mould life
100,000-300,000shots
Cavity
Single/Multi Cavity
Payment terms
T/T,Paypal,Though credit card on Alibaba and so on
Package
Standard wooden case and carton or according customer’s requirement
Delivery terms
UPS,DHL,FEDEX,TNT,EMS,By SEA or according to customer’s requirement
Lead time
15-35days
Certification
ISO9001:2015
